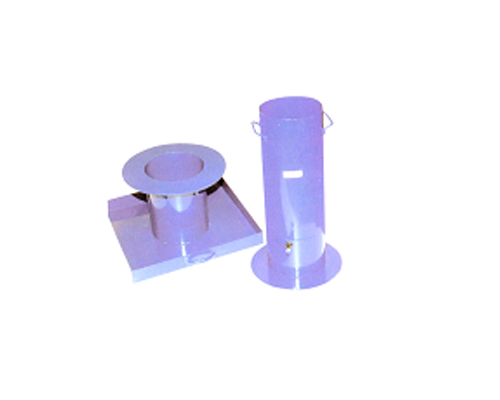

Sand Pouring Cylinder

The apparatus is suitable for field density estimation of fine and medium grained soils, as per IS: 2720 (Part XXVIII). It consists of :
(I) Sand Pouring Cylinder 115 mm internal dia with conical funnel and shutter.
(II) Calibrating Container, 100 mm inner dia and 150 mm deep with Flange 50mm wide.
(III) Metal tray 300mm square x 40mm deep with a 1OOmm dia hole at the centre.

The apparatus is suitable for estimation of field density of fine, medium and coarse-grained soils, as per IS : 2720 (part XXVIII) and consists of :-
(I) Sand Pouring Cylinder, 215 mm internal dia, with conical funnel and shutter.
(II) Calibrating container 200 mm inner dia x 250 mm high with 75 mm wide flange.
(III) Metal tray 450 mm square x 50 mm deep with a 200 mm dia hole at the centre.
