Load frame is essential equipment for carrying out Unconfined Compression, CBR and Triaxial Shear Tests. Since very slow rates of strains are required for Triaxial Shear Tests, load frame are made to suit the same. A suitable frame can be selected from a wide range of our Load frames depending upon the type of test and the size of sample. Each load frame is provided with a standard proving ring adaptor having V2" BSF male threads to suit Proving rings.

Load Frame, Hand Operated (50 kN) The load frame is designed for a max. load of 5000 kgf. It consists of a screw jack mounted in reversible channel frame, which can be used for loading from top to bottom and vice versa.

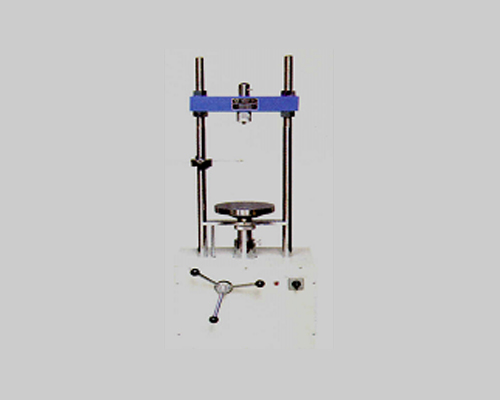

Load Frame, Motorized (50 kN capacity with Single Speed) It is a single speed load frame designed for 1.25mm/min strain rate. It can accommodate Triaxial cells up to 100mm diameter specimen. Loading capacity is 50kN.Operates on 220V 50Hz supply

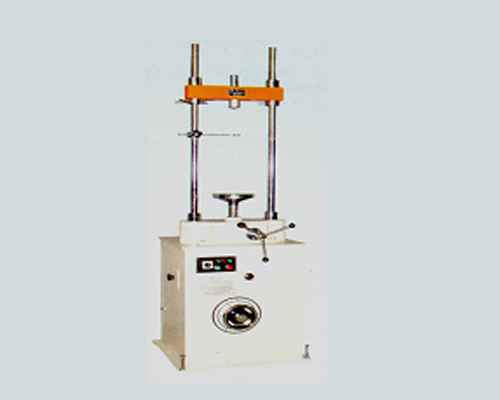

Load Frame, Motorized, (50 kN) Designed to accommodate Universal Triaxial Cell for testing soil specimens up to 100 mm in diameter. A turret type gear box is incorporated in the drive which gives eight different rates of strain viz. 1.25, 0.625,0.5,0.25,0.125,0.0625,0.05 and 0.025 mm/min. with a speed chart fixed on the front side of the machine. The Turret type motor drive gear unit to give 30 different rates of strain ranging from 6 mm/min down to 0.00048 mm/min. The electrical controls have been provided on the front panel of the load frame. Suitable for operation on 220V 50 Hz, Single phase supply.

Load Frame Motorized
