INTRODUCTION

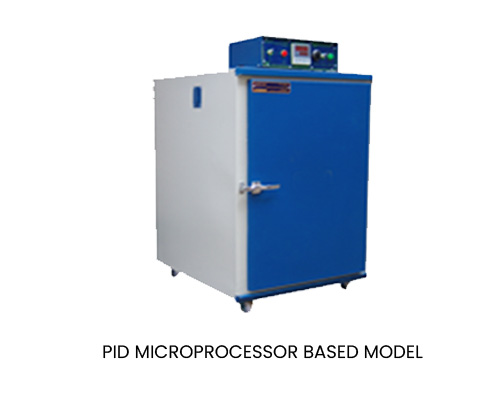

JEEYVEE Digital Bacteriological Incubator –Micro Control/PID Control Based is specifically design to cater the needs in Laboratory, Chemicals, Quality Control, R & D & Analytical, Pathological & Bacteriological Test etc. etc.
SALIENT FEATURES
Uniform heating.
Sturdy construction.
Air ventilation.(Conventional or forced air circulation – Optional)
Digital Temp. Indication Control – Micro Control/PID
Highly sensitive Temperature sensor (Pt-100 type)
Inner full Glass door with Alluminium channel.
Two Digital Indicating Windows. For Process Temperature
(PV) and Set Temperature (SV).
APPLICATION
Quality Control & R & D.
Medical.
Industrial Research.
Cultivation of Bacteria.
Pathological Test.
Biological Test.
Hospitals.
Moisture evaporation.
Plant Testing in Agriculture.
At required temperature within specific range.
CONSTRUCTION
Modern in design & rigid in construction. Double walled body. Inner chamber made of Stainless Steel and outer body made of Mild Steel duly powder coated paint. 75mm thick glass-wool insulation is provided between the two chambers. Door is fitted with electroplated hinges with spring and roller bolt locking or Magnetic latch.
TECHNICAL SPECIFICATION
| S I Z E |
HEATER RATINGS |
SHELVES |
CONTROL ACCURACY |
| |
LAB. |
MEMM. |
|
DIGITAL |
PID |
PROG. |
| 14” x 14” x 14” |
250 W |
250 W |
2 |
+/-0.5% FSD +/- 1 Deg. C. |
+/-1 Deg. C or better |
+/-1 Deg. C.
or better Prog. V/s time |
| 18” x 18” x 18” |
400 W |
400 W |
2 |
| 20” x 20” x 20” |
450 W |
450 W |
2 |
| 18” x 18” x 24” |
500 W |
500 W |
2 |
| 24” x 24” x 24” |
850 W |
850 W |
3 |
| 24” x 24” x 30” |
900 W |
950 W |
3 |
| 24” x 24” x 36” |
950 W |
1000 W |
3 |
HEATING & COOLING
HESE ARE MADE OF IMPORTED NICHROME/KANTHAL WIRES WOUND IN spiral form and placed and distributed equally to ensure uniform heat in the working chamber. Heaters are based on Asbestos sheets through porcelain refractoriness insulators. All heaters are working on black heat principle therefore automatically provided safety in operation and extended heater life. Heaters are easily replaceable.
CONTROL SYSTEM
TEMPERATURE CONTROL : By solid state electronic DIGI.TEMP.INDICATOR CUM CONTROLLER (MICRO-CONTROL/PID CONTROL BASED)
TEMPERATURE RANGE : 5 Deg. C above ambient to 60/70 Deg. C.
RESOLUTION : +/- 0.1 Deg. C.
ACCURACY : +/- 0.5% FSD +/-1 Deg. C.
TEMPERATURE INDICATION : By 4 digit Micro-Control Based Digital Temperature Indicator cum Controller (Micro Control/PID Control Based) having set value (SV) display & process value (PV) display in Digital Window.
SENSOR : Pt-100 type sensor with compensating cable internally connected with controlling DIGITAL TEMP. INDICATOR CUM CONTROLLER for input signal sense by sensor
TEMPERATURE SETTING : Feather touch key pad.
CONTROL PENAL : Provided at the top of the unit for easy assessment and operation. Power supply 230 V 1 Ph, 50 Hz. AC.
FORCED AIR CIRCULATION : Built-in powerful motorized variable speed force air circulation Sys.
STANDARD FITTING : Main Switch, Mains Indicator, Digital Temp. Ind. cum Controller ON/OFF (PD,OR PID/PROGRAMMABLE SYSTEM OPTIONAL) with mains indication & set temp. indication (Dual Digit Window) , forced air circulation switch & indication.
DIGITAL CONTROLLER PROVIDED WITH CALIBRATION CERTIFICATE TRACEABLE TO NATIONAL/INTERNATIONAL STANDARD
OTHER SPECIAL APPLICATION INSTRUMENTS AVAILABLE
PRECISION PROG. TRIPPLE WALLED INCUBATOR OF VARIOUS CAPACITY & SIZE.
