Compaction Test

Compaction Mould 100 mm internal dia x 127.3 mm height, 1000 ml volume commplete with collar and base plate, all made of ferrous I non-ferrous steel, tie rods of mild steel and wing nuts for clamping. Test is performed as per 15:2720 (Part- VII).

Compaction mould 150 mm internal dia x 127.3 mm height, 2250 ml volume, complete with collar and base plate all made of ferrous I non-ferrous material, fixing tie rods of mild steel with wing nuts. Test is performed as per 15:2720 (Part- VIII).

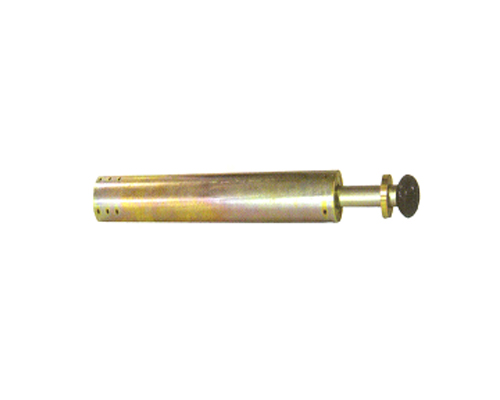

Compaction rammer, light made of mild steel 2.6 kg weight, 50 mm dia compaction face, 310 mm controlled free vertical fall. It conforms to 15:9198, 15:2720 (Part- VII).
